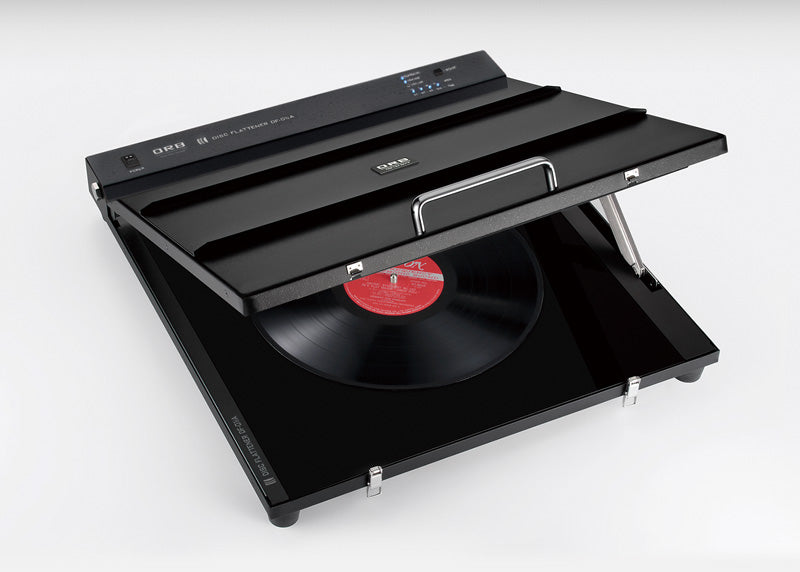

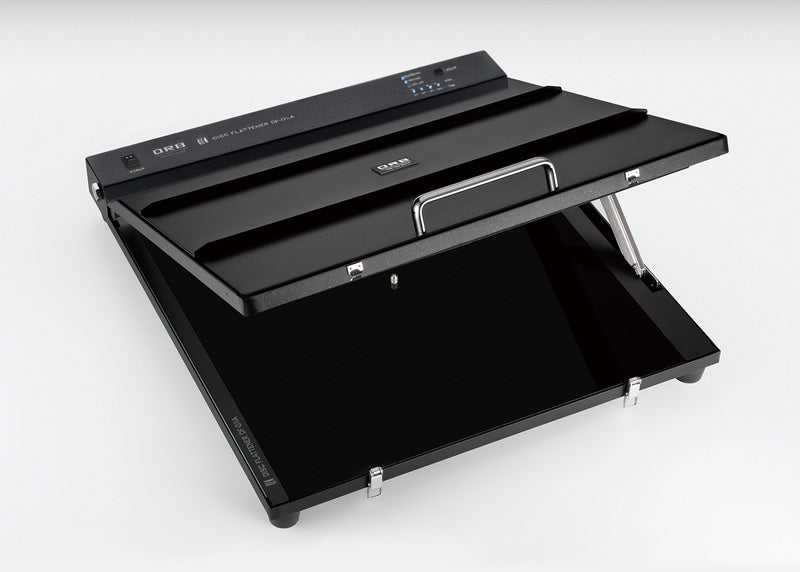

DF-01iA　Audio / Disc Flattener　AC100V

Rank S　New　- Free shipping -

• Precision Temperature and Time Control: Operate your DF-01iA without being affected by seasonal or regional ambient temperature variations.
• Selectable Modes: Choose between "7-inch mode" and "10/12-inch mode," each offering three temperature settings to cater to different record sizes.
• Groove Guard Adjustment: Capable of correcting heavyweight records (approximately 180g to 200g) without damaging the grooves.
• Elegant Design: A chic combination of black and silver, this device boasts a luxurious finish that complements any audio room.

Principle of Disc Flutter Correction:

• Analog records, primarily made of vinyl chloride, can warp due to storage methods and ambient temperatures, affecting playback quality. The DF-01iA uses a semiconductor film heater to maintain the optimal temperature for record correction. ORB's unique SCVH (Super Compliance Variable Hinge) structure allows for uniform pressure across the entire record, ensuring no damage to the sound grooves.

Applicable Record Sizes for Correction with DF-01iA:

• 12-inch Records: LPs (33 1/3), Singles (45), Groove Guard discs.
• 10-inch Records: LPs (33 1/3), Groove Guard discs.
• 7-inch Records: EPs (45), Compact discs (33 1/3), Groove Guard discs.

Product Specifications:

• Power Supply: 100VAC, 50/60Hz
• Overcurrent Protection: AC line 3A fuse protection
• Power Consumption: 160W (max)
• Dimensions: W471 x H93 x D493 mm
• Weight: Approx. 11kg
• Operating Temperature Range: Room temperature (without condensation)
• Operating Humidity Range: 20%–90% (without condensation)

Elevate your audio experience with the ORB Audio DF-01iA – the ultimate solution for maintaining the integrity of your vinyl collection.
